In order to meet the testing needs of factories, universities, research institutions, and other laboratories, our R&D team has specially developed high-quality small glass lined reaction kettles for laboratory use. The specifications range from 5L to 50L, and can be designed and manufactured according to user needs. The enamel layer thickness of small glass lined reaction kettles is also 0.8mm to 2.0mm, and they have undergone 20KV high-voltage voltage testing. The complete configuration includes the reaction kettle body, kettle cover, motor, reducer Mixers, temperature sleeves, discharge valves, etc., with working pressure: the pressure inside the kettle is less than or equal to 1MPa, and the jacket pressure is less than or equal to 0.6MPa. It can also be matched with small glass lined pipe fittings, glass lined heat exchangers, glass lined storage tanks, etc. It has advantages such as strong corrosion resistance, simple operation, long service life, and is not suitable for porcelain cracking.

The structural characteristics and forming principle of the half tube jacket of a glass lined enamel reaction kettle: The middle part of the half tube jacket is the kettle body, and the kettle body is longitudinally surrounded by the half tube. The half tube is filled with circulating cooling water, and the cross-sectional area of the half tube is semi circular. The enamel reaction kettle body and the surrounding half tube are welded together. The raw material used for the half tube is metal sheet material. Then, the sheet metal is formed through an array of forming rollers (concave convex wheels) arranged in a straight line before and after. The rotation of the concave convex wheels drives the metal sheet metal to be transported forward, followed by horizontal bending to form a semi circular shape, and then longitudinal bending to form a circular shape.

Electric heating glass lined reaction kettle is a high-quality electric heater (commonly known as a heating rod) evenly distributed at the bottom of the jacket of the glass lined reaction kettle, which heats the thermal oil in the jacket. The working principle of heat transfer through an oil bath is to make the materials in the glass lined reaction kettle reach the required temperature of the process. The electrically heated glass-lined reaction kettle has the characteristics of clean and hygienic, pollution-free, and fast heating. The distribution methods of electric heaters include oblique insertion, vertical insertion, and staggered oblique insertion, which can be directly connected to single-phase power or connected to 380V power supply through star or triangular connection methods. The electric heating glass lined reaction kettle produced by our company is equipped with a fully automatic heating control cabinet, which can achieve single or multiple sets of electric heaters working simultaneously. It has temperature display, motor control, leakage protection and other devices, fully realizing automatic control of electric heating.

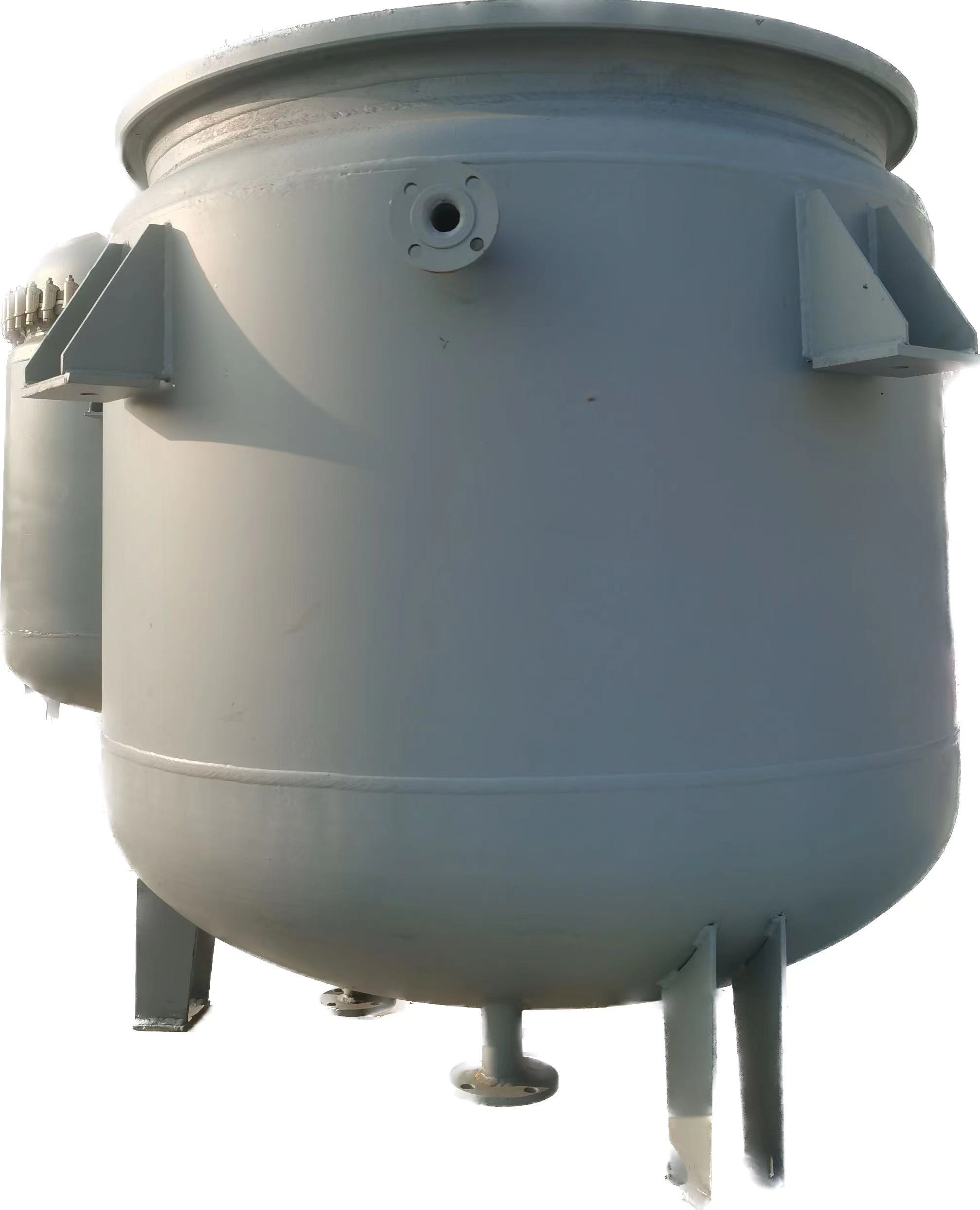

Nickname: Closed glass lined reaction kettle Category: Glass lined reaction kettle Product specifications: 1000L 15000L 2000L 3000L 5000L 6300L 8000L 10000L 12500L 16000L 30000L Product standard: National Design and Manufacturing Standards for Class I, Class II, and Class III Pressure Vessels Product Usage: This glass lined reactor is mainly used for large-scale chemical and pharmaceutical experiments. This type of glass lined reactor is also suitable for precision operating conditions in large-scale production such as chemical and pharmaceutical industries. Closed glass lined reaction vessels are widely used in medium-sized chemical, petroleum, pharmaceutical, pesticide, food, dye and other industries, and are the best equipment for hydrolysis, neutralization, crystallization, mixing, and emulsification

Product specification: 50L 100L 200L 300L 500L Product standard: National Design and Manufacturing Standards for Class I, Class II, and Class III Pressure Vessels Product Usage: This glass lined reactor is mainly used for small-scale chemical and pharmaceutical experiments. This type of glass lined reactor is also suitable for precision operating conditions in small-scale production such as chemical and pharmaceutical industries.

Product specification: 1000L 1500L 2000L 3000L 5000L 6300L 8000L 10000L Product standard: National Design and Manufacturing Standards for Class I, Class II, and Class III Pressure Vessels Product Usage: Open type glass lined reaction kettle (enamel reaction kettle) is mainly used for large-scale chemical and pharmaceutical applications. The open glass lined reaction kettle is also suitable for precision working conditions in medium to large-scale production such as chemical and pharmaceutical industries. As a commonly used reaction equipment for hydrolysis, neutralization, crystallization, mixing, and emulsification, it is widely used in industries such as chemical, petroleum, pharmaceuticals, pesticides, food, and dyes.
